In-Line and Trimmer Mount Leak Detection

In-line leak detection

A complete package in either single, double, or triple station models.  The GR-X in-line leak detector includes a microprocessor, adjustable stand and is available with or without our strand conveyor

User friendly controls allow you to set the fill value, PSI, and inspection time for each application.  Monitor the count of rejected bottles or containers, as well as the percentage of accepted units.  Convenient features include battery back-up, and individual circuit boards for power supply, transducer, and overall electronic control, to simplify maintenance and repair.

In-LINE FeatureS

  • Single, dual, or triple head units available
  • Testing speeds up to 80 bottles/min
  • Hole detection as small as .020 inches
  • Multiple setup configurations
  • Multiple bottle programming
  • Quick, repeatable changeovers
inline leak detector.jpg

Technical features

  • Speed is based on bottle size/shape and the range varies by application
  • Power requirements: 120V, 1Ph, 50/60 Hz
  • Air requirements: 80 psi
  • Construction: Aluminum and steel
  • Leak detection: Detects hole as small as .020"
  • Keypad: Panel mounted and keyed
  • Microprocessor: Self-calibrating
  • LCD display: Shows total containers accepted and rejected
  • Circuit boards: Individual for power supply, transducer, and overall electronic control
  • Programming: Stores up to 9 different user defined programs

Options

  • Additional nose cone assemblies
  • Bottle indexing/stop cylinders (required for unstable bottles)
  • Panel mounted, calibrated testing orifice (single station)

Trimmer mount leak detection

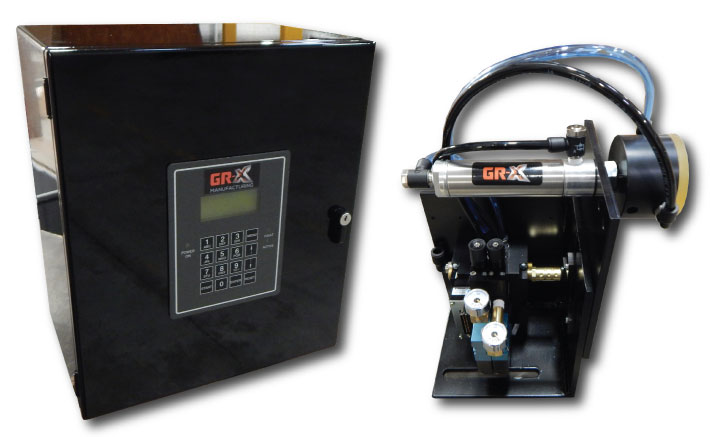

The GR-X trimmer mount leak detector is an industry work-horse that is integrated with trimmer PLC's or stand-alone for simple and effective leak detection.  Define your own programs (up to 9 total) and enter them easily using the keypad and LCD display.  Add optional equipment for additioanl quality control measurement.

Trimmer mount features

  • Single, dual, or triple head
  • Detects holes as small as twenty-thousandths (.020") of an inch or better depending on your application
  • Power requirements 120V, 1Ph 50/60 Hz
  • Air requirements - 80psi
  • Microporcessor - self calibrating
  • LCD display - shows total containers accepted and rejected
  • Circuit boards - Individual for power supply, transducer, and overall electronic control
  • Programming - Stores up to 9 different user defined programs
  • Keypad - Panel mounted and keyed

Options

  • Testing orifice, panel mounted, calibrated
  • Blow off station
